KR3000 Series are network-compatible paperless recorders with high visibility 12.1" TFT color LCD display and touch panel operation system. High speed of sampling rate 100ms for 48 points and high accuracy of ±0.1% were realized, and measured data is stored into internal memory and maximum 8GB compact flash card (CF card).

As it can be monitored by a web browser display on several computers on intranet or internet, FTP transfer of data file and E-mail notification are also available.

KR2000 Series are network-compatible paperless recorders with high performance and high operating function employed high visibility 5.6"TFT color LCD display. High speed of sampling rate 100ms for 12 points and high accuracy of ±0.1% were realized, and measured data is stored into internal memory and maximum 8GB compact flash card. As it can be monitored by a web browser display on several computers on intranet or internet, FTP transfer of data file and E-mail notification are also available.

The recorder can be used for various applications such as data management, research, development, remote and wide range monitoring by utilizing internet environment.

1

The recorders conforming to CE-marking, UL and CSA are 180mm hybrid recorders for 6-point, 12-point, 24-point types and 1 to 4-pen types with a simultaneous display of multi-channel data, bargraph display and other unique features.

1-point, 2-point, 3-point, 6-point dotting type and 1-pen types are available in the recorders.

2

The digital indicating controllers feature all functions, which are necessary for various control applications, including newly developed PID algorithms and a learning type overshoot suppression function "JyroNavi".

The digital indicating controllers feature all functions, which are necessary for various control applications, including newly developed PID algorithms and an overshoot suppression function.

The digital indicating controllers feature many functions including newly developed PID algorithms and an overshoot suppression function.

3

The digital indicating controllers feature many functions including PID auto-tuning function for various control applications in compact size of 48X 24mm.

The DB series is a 96 X 96mm digital indicating controller with the indicating accuracy of ±0.1% and the control cycle of approximately 0.1 seconds.

Various functions including universal input and multiple setting values (8 types) are provided as standard.

The KP series is a 96 X 96mm digital program controller with the indicating accuracy of ±0.1%, the control cycle of approximately 0.1 seconds and maximum 19 program patterns (maximum 19 steps/pattern).

Various functions including the whole program pattern display screen and universal input are provided as standard.

The DP-G series is a graphic program controller employed high visibility 5.6" TFT color LCD display. Maximum 200 types of program pattern (Maximum 4000 steps) are stored and performance pattern is selectable.

The digital indicating controller features various functions including socket type terminal board, 24V AC/DC power supply, international compliance, and MODBUS protocol communication. The software package provides the ease of parameter setup and data monitoring.

4

The IR-SA series of Infrared Radiation Thermometer provides broad selection of small and robust units to match your on-line applications for non-contact temperature measurement from 0 to 2500°C under harsh environment. Four models are available with modbus connectivity for parameter setup through remote setting unit or PC.

The IR-CA Product Line of Non-Contact Infrared Thermometers provides broad selection of units to match your applications and requirements for non-contact temperature measurement. The product line consists of 15 different series grouped into General Purpose and Application Specific models.

The IR-FA series is a fiber optic radiation thermometer featuring multi-function and high-speed response (10ms). Three types: single-color type for low temperature; single-color type for medium/high temperature and two-color type, are available.

5

The IR-BA series is a non-contact and high-speed compact radiation thermometer. The card sized detector with built-in converting function of 4-20mA output signal can easily be installed in narrow places, production lines and small equipment.

A standard speed type and a high speed type 150ms/95%) are respectively available for these standard type and small-target/short-distance type and small-target/long-distance type, and also various applicable types like as glass, lamp-anneal, film and burning gas.

Simple temperature measurement by pinpointing center of measuring spot by laser. Automatic back-lit LCD display at dark places by brightness sensor.

ON-LINE MEASUREMENT OF INFRARED MULTI ANALYZER, MOISTURE (THICKNESS) METERS

The IM series is on-line multi analyzer utilizing the infrared absorption. Converting capabilities are built into the compact designed detector unit for easy installation and operation.

The handheld thermometer is a small and lightweight with a clear view-finder. The direct view-finder enables to measure a small object with a long distance.

The handheld thermometer offers a wide measuring range of 600°C to 3000°C for IR-AHS, 900°C to 3000°C for IR-AHU, and —50°C to 1000°C for IR-AHT digital display of the measured value in view-finder and LCD display, plus storage of measured data.

6

MC1000 is a handheld digital thermometer having an easy-to-read large LCD display and light weight. A range of temperature probes with a variety of shapes and sizes to suit the application requirements.

The portable thermometer Model MF1000 is combined with a needle type sensor for measurement of internal temperature of foods or liquid temperature.

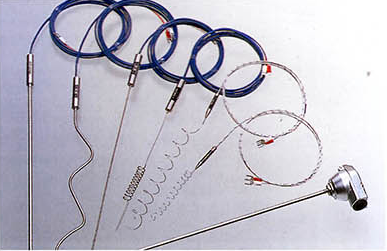

The temperature sensors filled with high-purity magnesium oxide in protection tube provide excellent response along with vibration resistance and corrosion resistance.

The thermocouples are designed for non-contact measurement of surface temperature of moving or rolling materials such as heating rollers, moving belts and plastic sheets.

7

Handy logger MR2041 is a palm size data logger, it is capable of storing up to 10000 temperature data per each channel. Power supply of logger is selectable from AA battery or AC adaptor, so it is usable as a portable type logger or fixing type logger.

Using the exclusive software, recording/recalling of data and programming of logging parameters can be executed with logger or through a personal computer.

8

The HN-CH series is a reliable and accurate palm-sized temperature/ humidity meter with the humidity range of 0 to 100%RH by using a newly developed capacitance type humidity sensor. The data logging function capable to store each 8000 readings of temperature and humidity into memory is built-in.

The JU/JW series of thyristor regulators feature a compact size and light weight and enable high-density installation. Their methods of control include two ways, the phase-angle control and zero-cross control systems. In the phase-angle control systems, the voltage, current and power feedback control types and a type without feedback control are available for the selection of an optimum type according to the characteristics of the heater used.

9

The small and lightweight thyristor regulators for single-phase loads are characterized with high panel installation density.

Two control systems, a phase-angle firing system for continuous power control and a zero-cross firing system, are built-in and selectable for various applications and power environment.

The applications include small electric furnaces, calibration bath, casting dies heating and heating units for laboratory use.

Standard Radiation Thermometer IR-RST series has been developed under collaborative research with the National Metrology Institute of Japan (NMIJ), which is applicable for traceability of calibrating • conventional radiation thermometers.

The standard platinum resistance thermometers, which have been commercialized under the guidance tif National Research Laboratory of Meteorology, conform to International Temperature Scale, 1990 (ITS-90).

The fixed point blackbody furnaces are used to calibrate standard radiation thermometers for comparison calibration of radiation thermometers.

The standard thermocouples are for calibration of thermocouples.

Three kinds of S type, R type and B type thermocouples are available.

The comparison type blackbody furnaces were developed jointly with National Research Laboratory of Meteorology for calibration of radiation thermometers and Nkr have large aperture diameters.

10

KT-F116 conducts fixed point calibration of resistance thermometer and thermocouple by realizing freezing point of Al and Ag, combing with shield fixed point cell.

FUJIOKA FACTORY

The factory has developed and manufactured instrument systems and software as well as measuring, controling and monitoring instruments including recorders, controllers and scanners.

STANDARD LABORATORY

The standard laboratory has got the approval (approval # 0024) by the national authority as the approved laboratory of calibration for sensors and has performed calibration tests of sensors from outside.

The laboratory has issued the calibration certificates with JCSS mark for temperature sensors, glass thermometers and radiation thermometers.

KUKI FACTORY

The factory has developed and manufactured radiation thermometers including moisture meters and thickness meters, sensors including temperature, humidity, pressure and level, and thyristor regulators, and has manufactured and engineered total systems, distributed control systems and special application systems.

HEAD OFFICE

JQA-EM2414

ISO14001

JQA-0656

ISO9001

CHINO CORPORATION

32-8, KUMANO-CHO, ITABASHI-KU, TOKYO 173-8632, JAPAN
